From raw cell to fully integrated energy storage — Chinyo Power covers every layer with the same uncompromising quality.
Automotive-grade prismatic lithium iron phosphate cells manufactured on fully automated production lines.
High-rate prismatic LFP cell designed for low-altitude eVTOL aviation and aerospace-grade applications. Excellent power density and cycle life.
Industry-standard 280Ah prismatic LFP cell for stationary energy storage. Proven reliability with 8,000+ cycle life and superior thermal stability.

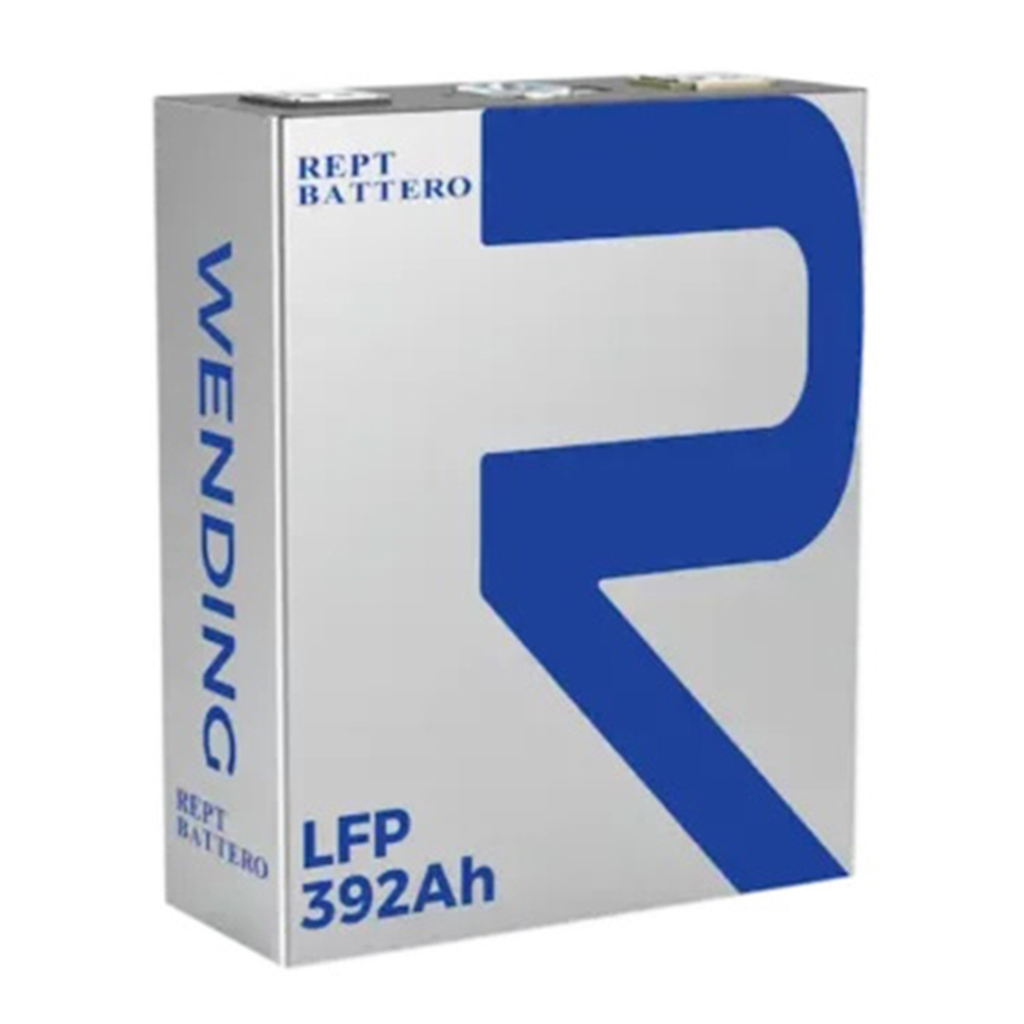

Next-generation 392Ah prismatic LFP cell optimized for utility-scale and long-duration energy storage with 12,000 cycle life.
| Specification | 50Ah | 280Ah | 392Ah |
|---|---|---|---|
| Cell Type | Prismatic LFP | Prismatic LFP | Prismatic LFP |
| Nominal Capacity | 50 Ah | 280 Ah | 392 Ah |
| Nominal Voltage | 3.2 V | 3.2 V | 3.2 V |
| Energy | 160 Wh | 896 Wh | 1,254 Wh |
| Cycle Life (80% DoD) | ≥4,000 | ≥8,000 | ≥12,000 |
| Max Continuous Discharge | 6C | 1C / 2C optional | 1C |
| Operating Temp (Charge) | 0 ~ 55 °C | 0 ~ 55 °C | 0 ~ 55 °C |
| Operating Temp (Discharge) | -20 ~ 60 °C | -20 ~ 60 °C | -20 ~ 60 °C |
| Dimensions (L×W×H) | 148×27×100 mm | 174×72×207 mm | Custom |
| Weight | ~1.05 kg | ~5.4 kg | ~7.5 kg |
Pre-integrated battery systems for utility-scale and large commercial deployments — built on automotive-grade components and certified for global markets.

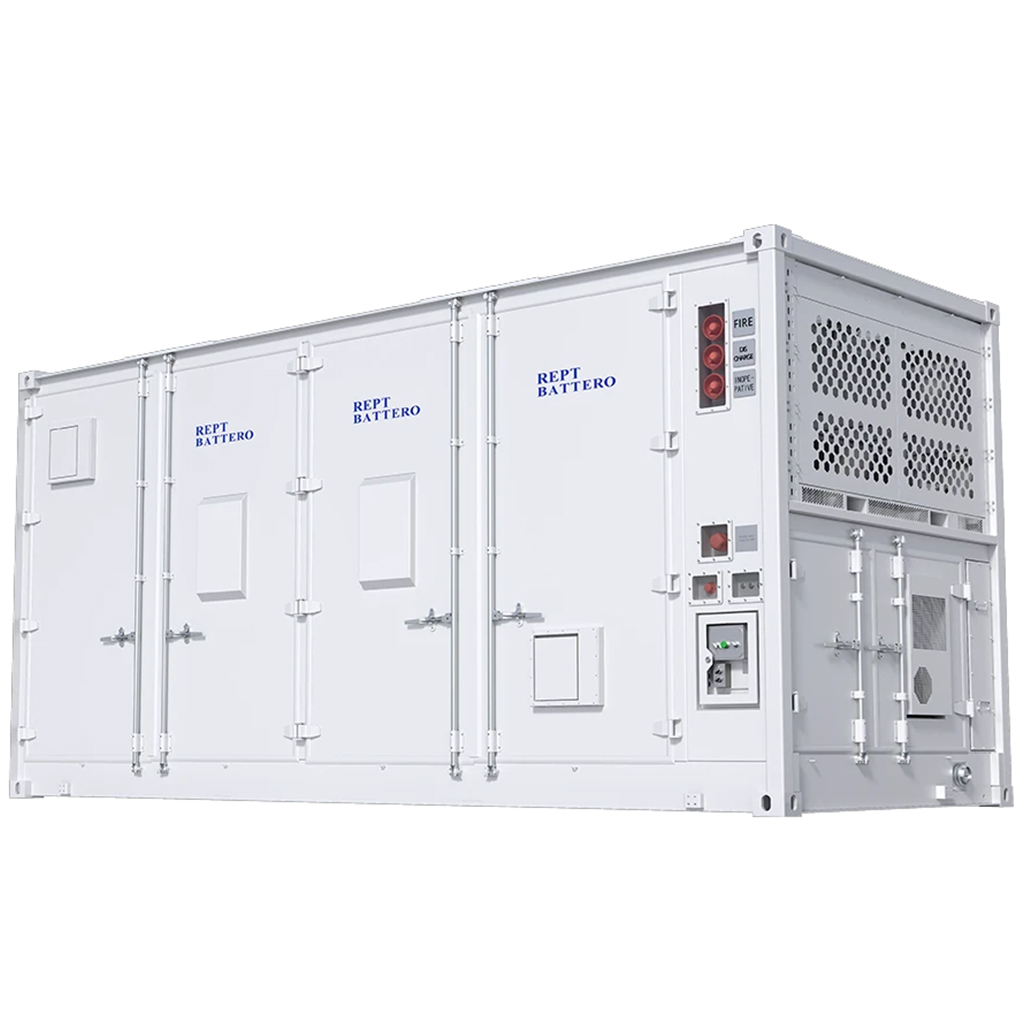

20-foot containerized battery system with integrated liquid cooling, BMS, fire suppression and HVAC for utility-scale projects.
Integrated hybrid inverter and battery cabinet for residential and small commercial storage. Plug & play installation.
Cabinet-style hybrid inverter with built-in PV charge controller and grid-tie function for off-grid and backup power scenarios.
Modular, scalable energy storage cabinets for peak shaving, demand response, microgrids and backup power across commercial and industrial sites.
Compact all-in-one cabinet designed for small commercial sites, with integrated PCS, EMS and thermal management.
High-capacity outdoor cabinet for medium commercial and light industrial use, with built-in fire suppression and remote monitoring.
Turnkey microgrid solutions combining PV, ESS, diesel backup and smart EMS for off-grid and weak-grid applications.
